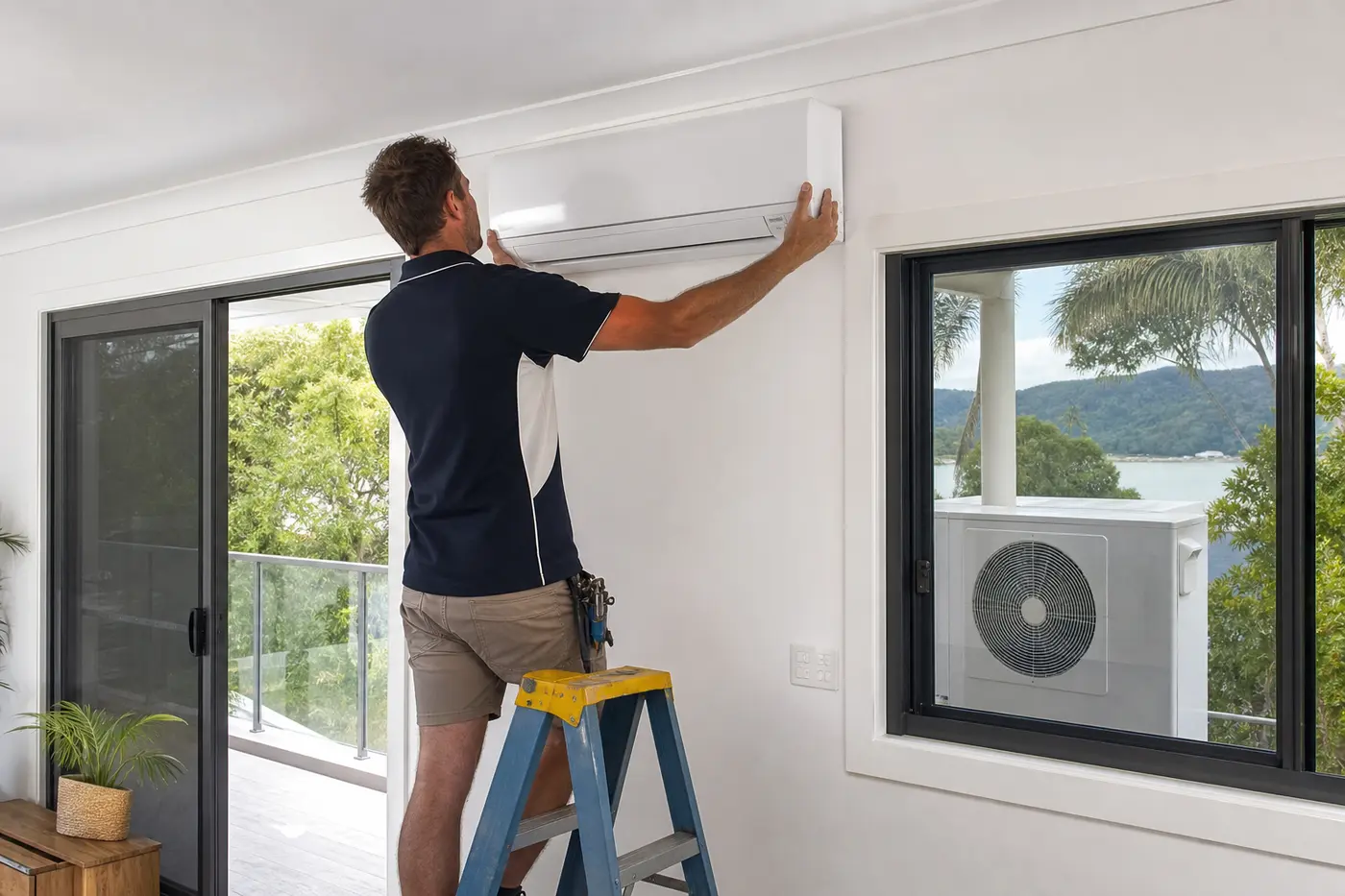

You ask two installers to quote the same job and one comes back nearly double the other. It happens all the time, and it leaves a lot of homeowners wondering what a fair split system installation cost actually looks like. The short version is that the box on the wall is only part of the bill. Where the unit goes, how far the pipes have to run, and what your switchboard can handle all move the number around.
We install split systems right across the Central Coast, from Gosford and Erina through to Toukley and Umina Beach, so here is a plain look at what drives the price, what a good quote includes, and where the cheap ones tend to catch people out.
What a split system usually costs to install here
Prices move with the size of the unit and how tricky the install is, but as a rough guide these are the ranges most Central Coast homeowners land in for supply and installation of a single indoor head:
- Small bedroom or study (2 to 2.5kW): around $1,500 to $2,600 supplied and fitted for a straightforward back-to-back job.
- Medium room or open living area (3.5 to 5kW): roughly $2,400 to $3,800, which is where most homes sit.
- Large living space (6 to 8kW): about $3,500 to $4,800, and a little more again for a premium brand.
“Back-to-back” means the indoor unit sits on an outside wall with the outdoor unit directly behind it, so the pipe run is short. That is the cheapest layout. If you supply your own unit and only pay for fitting, a basic back-to-back install on its own often runs from about $600 to $900. The moment the job needs longer pipe runs, extra height, or electrical work, that figure climbs.
Running several rooms off one outdoor unit (a multi-head system) is a different conversation. Those typically start around $4,500 and rise from there with each indoor head you add.
What you are actually paying for
A split system quote is really two costs bundled together. First there is the equipment: the indoor head, the outdoor compressor, the brackets and the refrigerant. Then there is the labour and materials to fit it, which covers the copper pipe, drainage, electrical connection, wall penetrations, and the licensed work to charge and test the system. On a typical single-head job the unit itself is often $1,000 to $1,600 of the total, and the rest is the install.
That split matters. A bargain unit price means little if the installation is rushed or under-done. The parts you cannot see, the pipe work and the drainage, are the parts that decide whether the system runs quietly for years or drips down your wall next summer.
The things that push your quote up or down
When two quotes look far apart, it is usually because the installers have priced the same list of variables differently, or one of them has quietly left something off. These are the big ones:
- Pipe run distance. If the indoor and outdoor units cannot sit back to back, the pipe has to travel further, often up into the roof and down again. More pipe, more labour, higher cost.
- Height and access. A second-storey head, an awkward wall, or an outdoor unit that needs a bracket up high all add time and gear.
- Your switchboard. Older homes sometimes need a dedicated circuit, or a switchboard upgrade, before a new system can be connected safely. That is an electrician’s job and it adds to the bill.
- Wall type. Drilling through double brick takes longer than weatherboard or cladding.
- Unit size and brand. A bigger room needs more capacity, and premium brands cost more up front but usually run more efficiently.
- How close you are to the water. Homes near the beach cop salt in the air, and that corrodes outdoor units faster. A unit built for coastal conditions, or one sited with a bit of shelter, is worth the small premium on this part of the coast.
It pays to think past the day of the install too. A cheap, undersized unit working flat out will quietly add to your power bill over a hot summer, so weigh the purchase price against what the system costs to run. Our guide to the running cost of air conditioning on the Central Coast is a good sanity check before you settle on a model.
Why the cheapest quote is not always the cheapest job
You will see eye-catching install deals advertised, sometimes well under $600. Those prices assume a picture-perfect back-to-back install: a short pipe run, an easy wall, and a switchboard that is ready to go. Plenty of homes tick those boxes. Plenty do not. When the job needs more pipe, extra brackets, or electrical work, the “from” price stops applying and the extras get added on the day.
None of that is dishonest on its own. The trouble starts when you compare a stripped-back headline price against a quote that already includes everything. Ask each installer to quote the same scope and the real gap usually shrinks.
What a proper quote should spell out
A quote worth trusting tells you exactly what you are getting. Before you sign, check it covers the unit make, model and capacity, the length of pipe run included and the cost per metre beyond that, whether electrical work and any switchboard changes are in the price, who removes and disposes of your old unit, and the warranty on both the equipment and the workmanship.
For most homes on the Coast a single, well-sized split system is the simplest way to cool a room properly. Our split system installation service starts with a look at your space and an honest scope, so the figure you get is the figure you pay, not a starting point that grows on install day.
Split system or ducted? A quick cost reality check
If you are cooling one or two rooms, a split system almost always wins on cost. Ducted starts to make sense once you want the whole house done, and the price reflects that. To see how the two stack up before you commit, our breakdown of ducted air conditioning costs on the Central Coast gives you the other side of the comparison.
Straight answers about split system installation costs
How much does it cost to put a split system in?
For a supplied-and-installed single indoor unit, most Central Coast homes land between roughly $1,500 and $4,800, depending on the size of the room and how involved the install is. A small bedroom system sits at the lower end, while a large living-area unit sits near the top. The only way to know your number is a quote based on your actual walls and switchboard.
Does the price include the unit or just the installation?
It depends who is quoting. A “supply and install” price bundles the unit and the fitting together, which is what most homeowners want. A cheaper install-only price assumes you have already bought the unit yourself, so always check which one you are looking at before you compare two quotes.
Can I really get a split system installed for under $600?
Sometimes, but only for a basic back-to-back install where you have supplied the unit and everything lines up perfectly. Those advertised prices rarely include longer pipe runs, extra height, or any electrical work. If your home needs any of that, expect the final figure to be higher than the headline.
How long does a split system installation take?
A straightforward single-head install is usually done in half a day to a full day. Trickier jobs, such as a two-storey install or one that needs switchboard work, can stretch longer. Multi-head systems take more time again because each indoor unit is fitted and connected separately.
Do I need an electrician to install a split system?
The connection to your power supply has to be done by a licensed person, and some older homes need a dedicated circuit added first. A good installer either handles that side themselves or coordinates a licensed electrician, so ask upfront whether it is included in the quote rather than finding out on the day.
Does a bigger unit cost more to run?
Not always. An oversized unit costs more to buy and can cycle on and off in a way that wastes energy, while a unit sized correctly for the room tends to run most efficiently. Getting the capacity right for your space matters as much for your power bill as the model you choose.
If you want a clear, no-surprises figure for your own home, we are happy to walk the job and price it properly. Reach out to arrange a split system quote anywhere on the Central Coast and we will scope it honestly before any work begins.
